DF300 (Dual-Pedal F-Series Foot Switch, Maintained Action)

$ 114.50

Adds a 12-gauge steel housing to protect from debris and enclose the foot switches.

SKU: DF300 Category:

Description

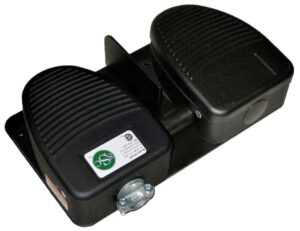

The DF300 is a dual foot switch with a connector tube to route the wiring from one side to the other, with a single cable exit point.  The foot switches are mounted on a welded steel base with a center divider and bumper feet.  Great for twin pedal, up/down, computer, office, home / shop, and forward/reverse foot switch applications where maintained (press on / press off) action is required.

  • Action: maintained (press once to turn on, press again to turn off, similar in action to a light switch)
  • # of Switches: 1 per side
  • Electrical Rating, per Switch: 20 A, 125 VAC; 10 A, 250 VAC; 1.5 HP, 125/250 VAC
  • Circuit: SPST, with wire leads inside the foot switch for cable attachment (makes and breaks one line of the circuit)
  • Cable: none
  • Product Info Sheet

Note: The divider between the two foot switches is not included when the guard option is added.  If you need the divider with the guard option, please call to order, as this is a special option that adds $20.

Additional information

Weight 4.7 lbs
Dimensions 9 × 5 × 3 in
