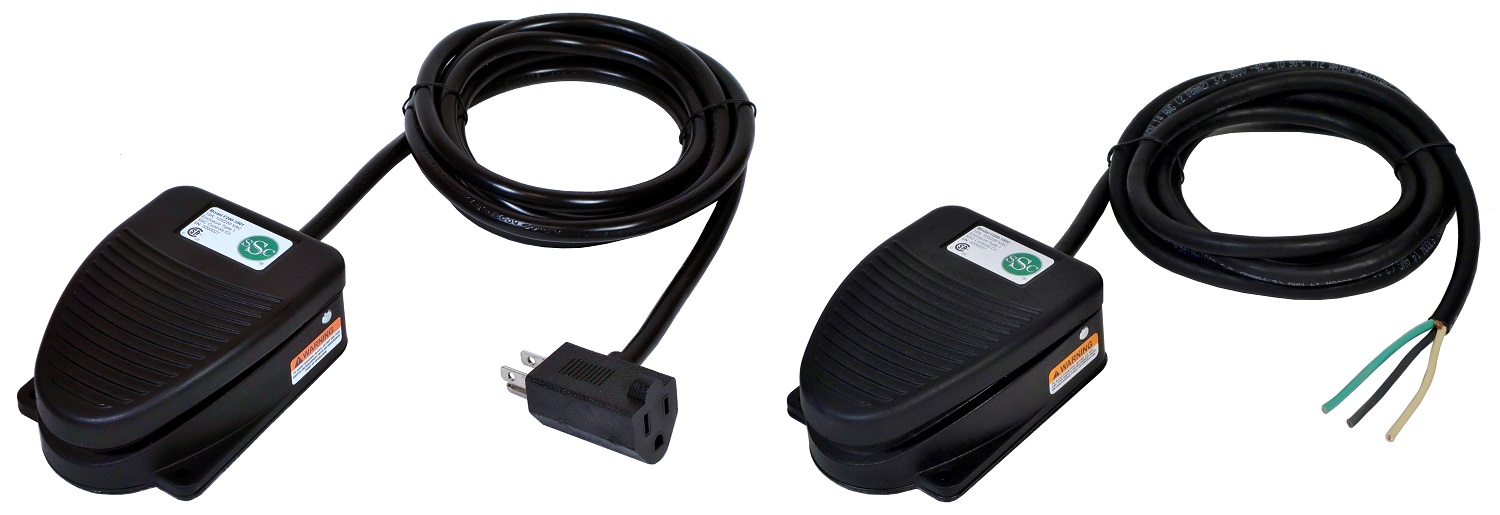

The F-Series is a medium-duty foot switch (foot pedal) featuring a highly durable die-cast zinc alloy housing, attractive rounded appearance with powder-painted finish, user-friendly wiring connection, and numerous switch and wiring combinations. The added weight provides stability and will be secure under your foot, while the attractive finish fits well in home, shop, and office as well as factory environments. Ideal for power tools, office and communication equipment, medical, factory floor, hand tools, boom lifts, scissor lifts, man lifts, emergency vehicles (fire truck siren or air horn), musical operation, lighting and lamps, and more. Replaces the clipper foot switch style. Click to view the foot switch safety warning or foot switch cross-reference chart. Note: Pictured is model F200-1501 on left and F200-1502 on right.

F-Series Foot Switches (showing piggyback plug and leads)
F-Series Foot Switches (showing piggyback plug and leads)

Design Features

  • Medium-duty construction — ideal for industrial, shop, and office environments.
  • Die-cast zinc alloy housing provides superior durability and long life.
  • Powder-painted black finish with bottom traction pad.
  • Cable cord grip fits up to .60″ cable diameter (on units without cables).
  • Includes two exterior bolt-down holes.
  • Available with Momentary (press and hold to turn on, release to turn off) or Maintained (press once to turn on, press again to turn off) action.
  • F300 models can turn on and off lights, lamps, appliances, etc., without having to bend down (has push-on, push-off “Maintained” action).
  • Model F222 has an additional force between activation of each switch (two-stage function).
  • Also available as a dual model (with two foot pedals connected together) in the DF-Series.
  • Enclosure rating: CSA/NEMA Type 1; IEC 60529 IP20 (click here for details).
  • Certified to CSA and UL standards.
  • Size (single unit exterior dimensions): 4.8″ L x 3.5″ W x 1.7″ H; 2.1 pounds

Quality Features

  • Designed and manufactured under an ISO 9001 certified quality system.
  • Includes a 1-year warranty on parts and labor.
  • Made in USA.

F-Series Foot Switches — Model Chart



Info Sheet

 Model Action* Cable or Terminals Electrical Rating Circuit Price


F-Series Foot Pedal, Front ViewF-Series Foot Switch Pedal, Back View

F-Series Foot Switch, Flipped View

Info Sheet

Exterior Dimensions

CSA Logo

Wiring Diagrams:

Wiring Diagram (units with Cables)

Wiring Diagram (units without cables)

 F200 momentary  quick-connect terminals (fits .187 x .020 terminals) or for soldering 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC SPDT $39.50
F200-GP momentary  quick-connect terminals (fits .187 x .020 terminals) or for soldering 0.1 A, 125 VAC (special switch with gold-plated contacts) SPDT $51.50
F200-1501 momentary 8-ft cable with piggyback plug for wall outlet 15 A, ½ HP, 125 VAC; 0.1 A, 125 VDC SPDT wired N.O. $58.75
F200-1502 momentary 8-ft cable with leads 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC SPDT wired N.O. $56.75
F202 momentary  quick-connect terminals (fits .187 x .020 terminals) or for soldering 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC DPDT $54.80
F222 momentary, 2-stage  quick-connect terminals (fits .187 x .020 terminals) or for soldering 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC (has two switches) SPDT each stage $72.54
F300 maintained wire leads inside foot switch 20 A, 125 VAC; 10 A, 250 VAC; 1.5 HP, 125/250 VAC SPST $52.25
F300-1501 maintained 8-ft cable with piggyback plug for wall outlet 15 A, 125 VAC; ¾ HP, 125 VAC SPST wired N.O. $72.75
F300-1502 maintained 8-ft cable with leads 15 A, 125 VAC; 10 A, 250 VAC; ¾ HP, 125 VAC SPST wired N.O. $70.25
F330 maintained wire leads inside foot switch 20 A, 125 VAC; 10 A, 250 VAC; 1.5 HP, 125/250 VAC SPDT $61.30
F330-1342 maintained 8-ft cable with leads; wired both N.O. and N.C. with shared common 13 A, 125 VAC; ¾ HP, 125 VAC SPDT $86.50
F500 momentary screw terminals 20 A, 125/250 VAC; 1 HP, 125 VAC; 2 HP, 250 VAC; 10 A, 125 VAC “L”; .50 A, 125 VDC; .25 A, 250 VDC SPDT $46.80
F500-1501 momentary 8-ft cable with piggyback plug for wall outlet 15 A, 3/4 HP, 125 VAC (has higher switch capacity than series F200) SPDT wired N.O. $69.20
F500-1502 momentary 8-ft cable with leads 15 A, 3/4 HP, 125 VAC (has higher switch capacity than series F200) SPDT wired N.O. $67.20
F502 momentary screw terminals 10 A, 125/250 VAC, 1/8 HP, 125 VAC; ¼ HP, 250 VAC; .50 A, 125 VDC, .25 A, 250 VDC DPDT $85.80
F540 momentary screw terminals 15 A, 125/250 VAC; 1 A, 125 VDC; .5 A, 250 VDC SPDT-DB (double break) $83.60

Note: For dual-pedal F-Series foot switches, see the DF-Series.

*Momentary Action: Press and hold to turn on, release to turn off (like a car horn). Maintained Action: Press once to turn on, press again to turn off (like a light switch).

Optional Features


 Option Part No. Price Info Sheet
F200-1501-G (Foot Switch with Guard and Plug - SSC Controls) Foot Switch with Guard and cable with 3-pronged series tap ("piggyback") plug for wall outlet. F200-1501-G $77.75 Info Sheet Exterior Dimensions
F200-1502-G (Foot Switch with Guard and Leads - SSC Controls) Foot Switch with Guard and cable with leads. F200-1502-G $71.50 Info Sheet Exterior Dimensions
F-Series Foot Pedal Switch with Guard Single Guard: Add "-G" to the end of the model number. Adds a durable 12-gauge steel housing. The guards provide a secure housing in which to locate the foot, as well as protect the switch from debris. -G Add $25.00 to any single unit above (select "Guard" option when ordering any of the above foot switches) Info Sheet Exterior Dimensions
DF-Series Dual Foot Pedal Switch with Guard Dual Guard: To add a dual guard to two units, see the DF-Series Dual Pedal Foot Switch product page. The DF-Series has a connector tube to route the wiring from one side to the other, with a single cable exit point. Adding "-DG" top the end of the model number adds a durable 12-gauge steel housing. The guards provide a secure housing in which to locate the foot, as well as protect the switch from debris. Note: You can also order two separate F-Series foot switches (each with separate cables) and a dual guard; call or write us with your requirements. -DG See DF-Series Dual Foot Switches for pricing info Info Sheet Exterior Dimensions
n/a Protective Vinyl Boot Cover (-BC option): The vinyl boot cover can be attached onto any single F-Series foot switch with no tools required.  The boot cover adds a layer of protection to keep out dirt, dust, light overhead dripping water, and other undesirable elements.  Note: It does not make the foot switch waterproof or submergible, and it does not change the NEMA Enclosure Type 1 or IP 20 rating of the F-Series.   It is made of Plastisol PVC material. -BC $16.00 n/a
