Sale!

RFT1 Wireless TIG Welding Foot Control

$ 699.00 $ 549.00

Ordering Instructions:

You must select at least one adapter plug for your welder (using the check boxes below). The total price will include the main unit price plus the price of the adapter that you choose for your welder. You can also buy multiple adapters (which can be used on different welders and brands) for one main unit. Shipping is free for locations within the continental USA only.

14-pin adapter plug for Miller® RFCS-14 (043554 or 194744)

Replaces the 14-pin Miller RFCS-14 foot pedal.

6-pin adapter plug for Miller welders

Replaces the Miller RFCS-6M foot pedal (p/n 195183 and 195504).

6-pin adapter plug for Lincoln® welders

Replaces the 6-pin Lincoln K870 foot pedal.

8-pin adapter plug for Thermal Arc®, ESAB®, and Firepower® welders

Replaces the 10-4015, 10-4016, 600285, or Firepower 1442-0025 foot pedals.

8-pin adapter plug for ESAB welders that use the W4014450 foot pedal

Replaces the ESAB p/n W4014450 foot pedal. Will only work with these welders: ESAB Rebel EMP 205ic AC/DC, EMP 215ic, EMP 235ic, EMP 285ic, and TIG welders that use the W4014450 foot pedal. Will not work for any other pedal.

7-pin adapter plug for Everlast welders

Replaces the Everlast foot pedals that use the 22.5K and 47K potentiometers with standard Everlast 7-pin plug. Not for MTS units or any other special pedals.

7-pin adapter plug for AHP welders

Replaces the foot pedal for AHP with the 7-pin plug. AHP AlphaTIG 200X and AHP AlphaTIG 201XD; also Primeweld 225X TIG.

SKU: RFT1 Category:

Description

We are offering our wireless TIG foot control pedal to customers within the continental US only.

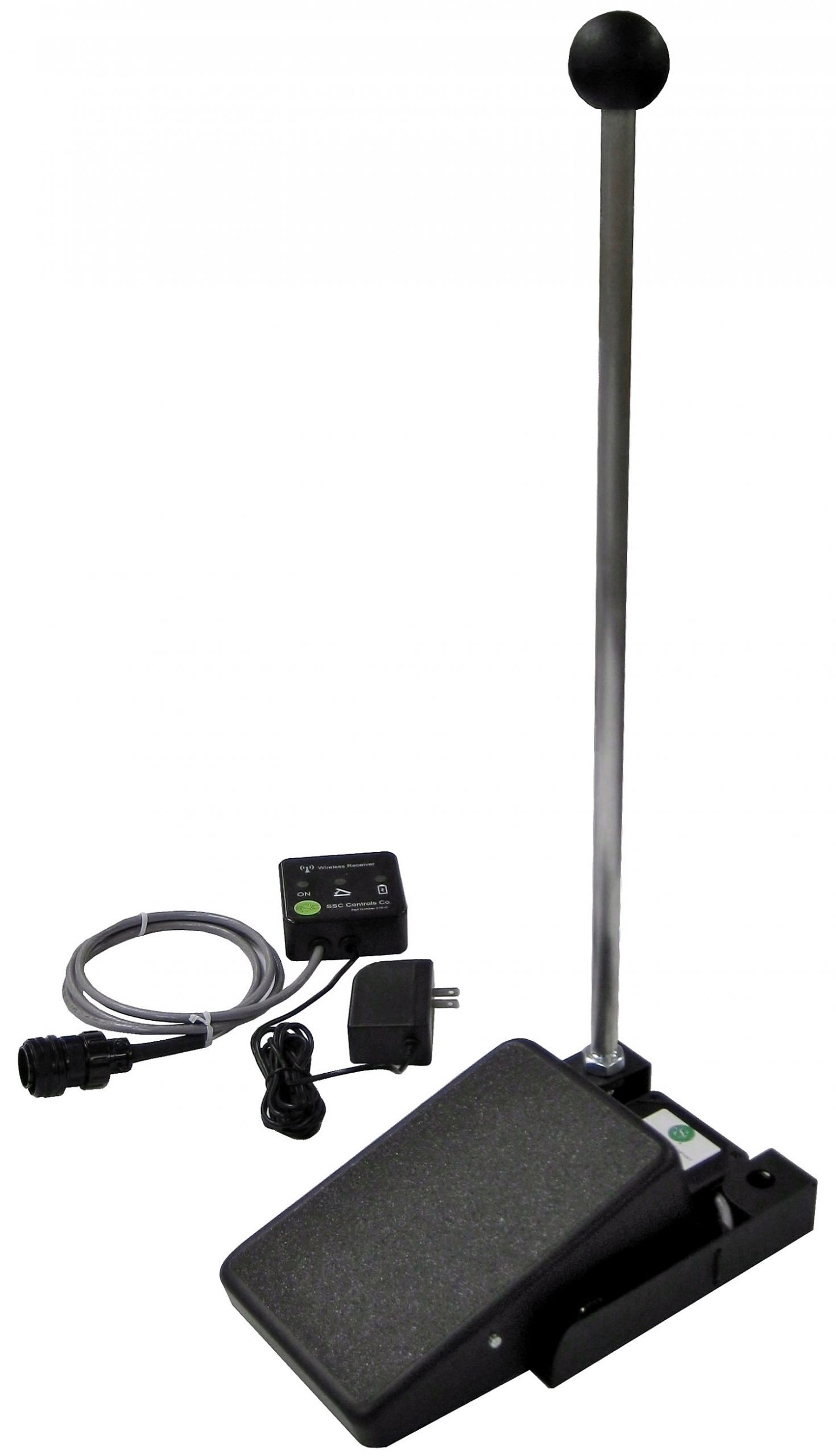

The RFT1 wireless welding pedal incorporates all of the benefits of the industry choice SSC TIG Foot Control, and cuts the cord to make your life easier.  The RFT1 is the first wireless pedal with steel construction and a removable aluminum handle for added mobility.  The plug adapter is sold as an add-on to fit your welder; call if you don’t see your plug listed below.  Because the RFT1 is designed to work for any welder for which we make a standard corded pedal, you can buy multiple plugs if you want to use the wireless pedal with multiple machines, including multiple brands.  And it incorporates SSC’s patented design which improves low-current welding while providing precision arc control.

Features:

  • Range of up to 200 feet.
  • Rechargeable lithium-ion battery with a life of about 6 months in a one-shift production environment before it needs recharging overnight.
  • Indicator light on the receiver will change from green to yellow and then to red to remind you to charge.
  • Aluminum handle provides easy portability without having to bend down (handle is removable if needed).
  • Receiver attaches to your welder using a magnet, and plugs into a standard north-american wall socket.
  • Buy multiple adapters to use the same pedal on different welders in your shop.
  • Designed and manufactured in the USA under a quality system certified to ISO 9001 requirements.
  • NEMA Enclosure Type 1 (for indoor use in dry environments)
  • 1-year warranty on parts and labor.
  • Patent pending.

Product Information Sheet (RFT1 Wireless TIG foot control)



Note: Does not work on ESAB or Thermal Arc welders that use the 14-pin plug for the remote control.

Additional information

Weight 12 lbs
Dimensions 17 × 17 × 10 in
