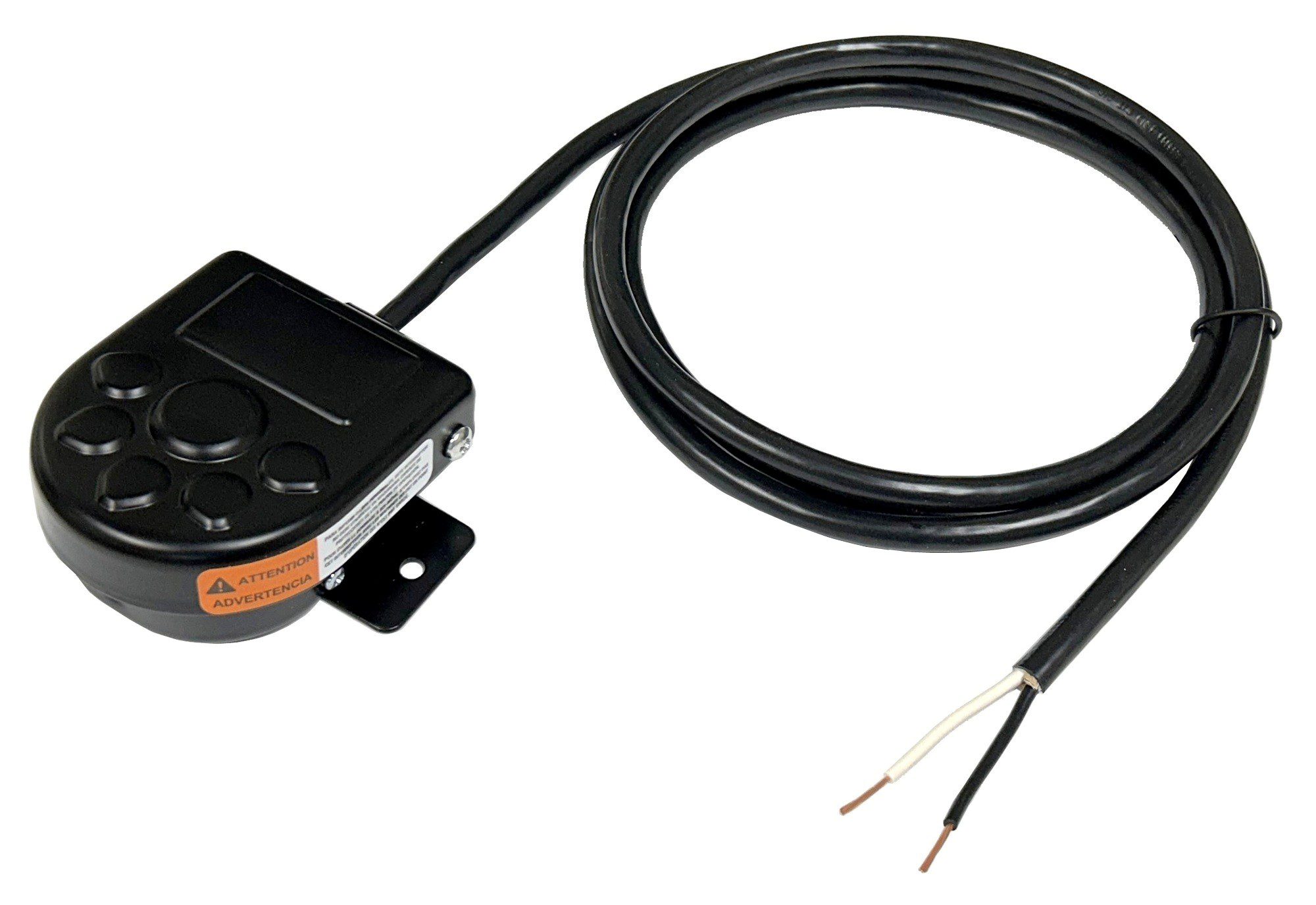

B850-0102X (B-Series Compact Foot Switch, Two Wire)

$ 25.14

Guard Option

Adds a 12-gauge steel guard to protect from debris and enclose the foot switch.

Description

The B850-0102X is a compact foot switch for tight locations or pushbutton-style pedal action. This foot switch is ideal for low-voltage control and signal applications, and it has 6-ft cable with two leads on the end of the cable (no ground wire). Common applications include emergency vehicles (fire truck siren or air horn), office and communication equipment, and more. This foot switch operates with a simple “momentary” action: press and hold to turn on, release your foot to turn off. Features a mounting bracket to attach the unit firmly to the floor or equipment if needed. For indoor use in dry environments. Enclosure Type 1; IEC 60529 IP20. Size: 3.0″ L x 2.6″ W x 1.2″ H; 0.5 pounds without cable. One year warranty on parts and labor. Made in the USA by SSC Controls Company.

  • Mounting: mounting plate
  • Electrical Rating: 1 amp, 24 VDC (for low-voltage control and signal applications)
  • Circuit: SPDT wired normally open
  • Cable: 6-ft cable with two leads (has no ground wire)
  • Applications: Low-voltage pushbutton, mounted switches, emergency vehicle siren or fire truck horn, more
  • Info Sheet
  • Exterior Dimensions

Additional information

Weight 1.6 lbs
Dimensions 9 × 5 × 3 in
