Description
The G500-MO-1502 foot switch features the tough heavy-duty construction of the G-Series foot switches and comes pre-wired with an eight-foot cable with leads on the end of it so you can wire this to your device. The pedal has a “momentary” action – press and hold to turn on, release to turn off (like a car horn). This foot switch makes it easy to turn electrical equipment on and off with the foot, freeing the hands to perform other operations or providing ergonomic improvement to your shop or a workstation. Features tough die-cast aluminum construction, an oversized guard (5.5” high, 6.2″ wide) with enough room to fit large boots, and an oil/water/splash/dust-resistant enclosure. Side cover flaps help protect pedal lever and shaft from oil, solvents, and water. UL/CSA/NEMA Enclosure Type 2, 4, & 13. IEC rating IP56. Size: 9.2″ L x 6.2″ W x 5.5″ H. CSA Certified to CSA and UL standards.
- Pedal Action: momentary (press and hold to turn on, release your foot to turn off)
- Rating: 15, 125/250 VAC
- Cable and Connection: 8-foot cable with leads

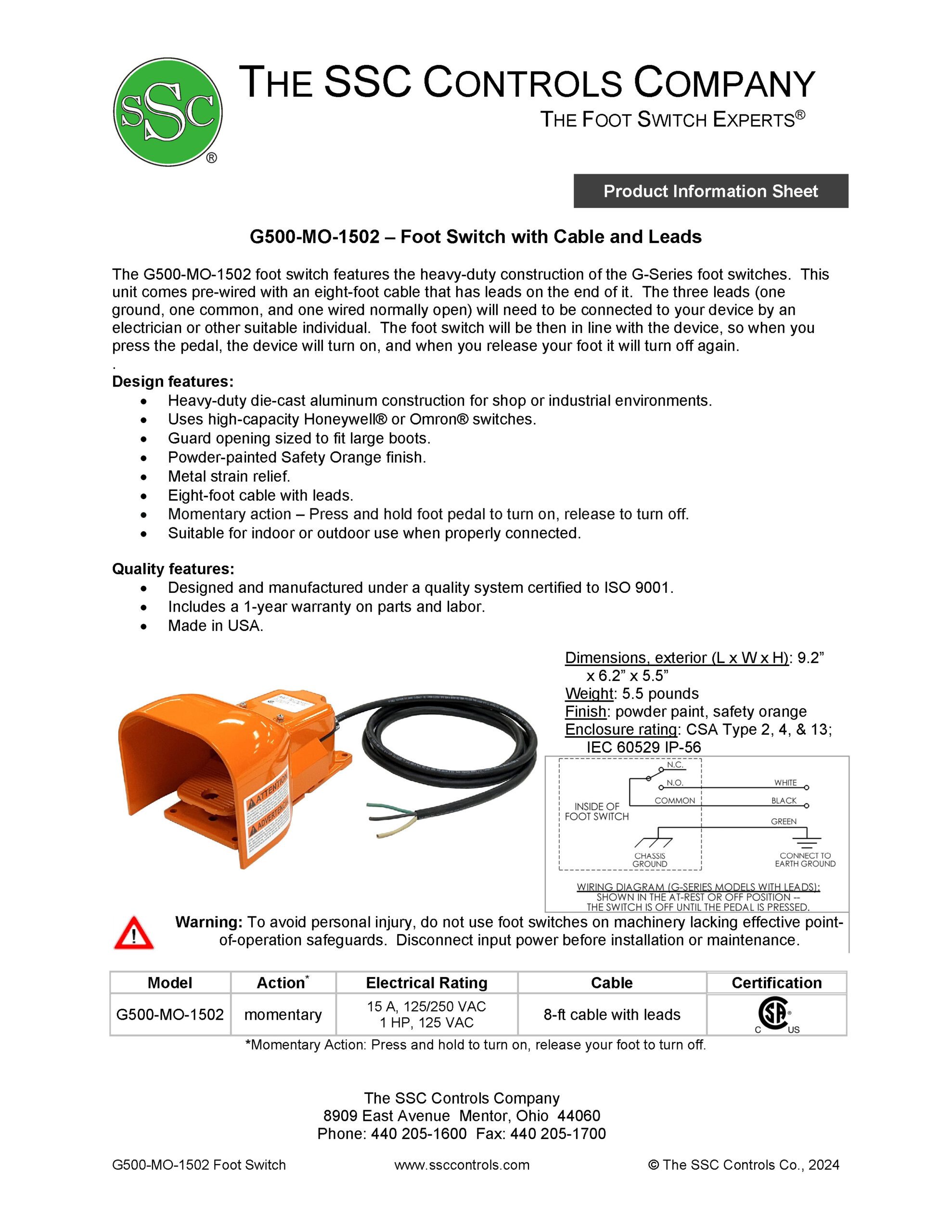

- Info Sheet (G-Series Foot Switches)
- Cross Reference: Linemaster® 531-SWH, 531-SWHO, 531-SWHOX Hercules (Linemaster® is a registered trademark of the Linemaster Switch Corporation)
