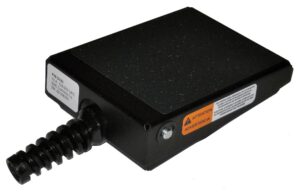

S100 (No Cable) – Foot Switch Without Cable, S-Series

$ 16.20

SKU: S100 (No Cable) Categories: , Tag:


  • Action: Momentary (press and hold to turn on, release to turn off)
  • Switch Rating: 15 A, 125/250 VAC; 0.1 A, 125 VDC
  • Contacts: SPDT
  • Cord: None; user must attach cable
  • Terminals: Quick-connect tabs (.187 x .020) for terminals or soldering
  • Assembly Note: Pliers may be used to secure the cable to the strain relief (or use Heyco strain relief assembly tool #R29 / 0022).
  • Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments.
  • Cross Reference: T-91-S
  • Dimensions (L x W x H): 4.6” x 3.5” x 1.4”
  • Product Information Sheet (S100 – No Cable)

Warning: To avoid personal injury, do not use foot switches on machinery lacking effective point-of-operation safeguards.  Disconnect input power before installation or maintenance.  Only a qualified electrician should install this foot switch, including proper grounding and installation per local and national electrical codes.

Additional information

Weight 0.9 lbs
Dimensions 10 × 7 × 2 in
