Description

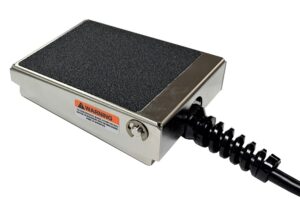

The S300W-0501 is a drip-tight / water-tight / dust-tight / corrosion-resistant foot switch made of stainless steel with a solid steel shaft for toughness. Ideal for applications where the foot switch may encounter occasional adverse or wet conditions. Just press and hold to turn on, lift your foot from the pedal to turn off. To install, simply plug the pedal into a 120V outlet, plug your device into the back end of the plug, and the foot switch will now be in line with the device and able to turn it on and off. Features a 5-amp, 125 VAC-rated switch with an 8-foot cable and a 3-pronged piggyback plug (NEMA 5-15 P/R). The Guard Option adds a stainless steel guard to the foot switch for added protection from debris and providing a secure location for the foot switch.
Design features
- Enclosure: drip-tight / water-tight / dust-tight / corrosion-resistant
- Pedal Action: momentary (press and hold to turn on, release your foot to turn off)
- Switch Rating: 5A, 125 VAC
- Contacts: SPST wired N.O. (normally open)
- Cord: 8-foot cable with leads
- Applications: Wet, dusty, or adverse conditions where a low-profile switch is ideal

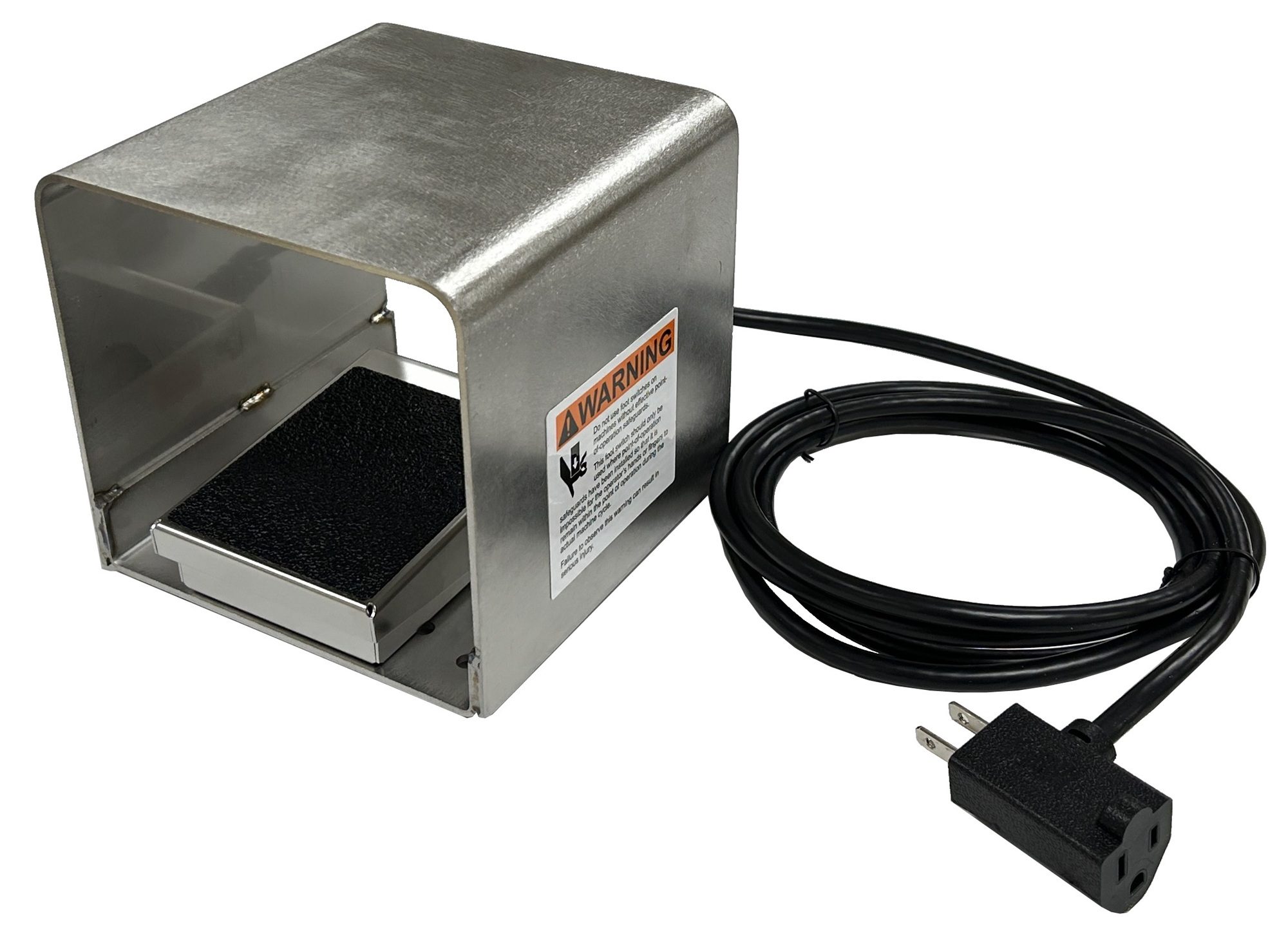

- Guard Option: Adds a 6 x 6 x 5.8 (L x W x H, inches) stainless steel guard to the foot switch
- Certifications: Certified to CSA and UL standards
- Enclosure rating: CSA Type 1, 4X, 6, 6P
- EN 60529 Degree of Protection: IP67
- Warning: Do not use this foot switch underwater.
- Cross reference: T-91-SWANO3S
- Product Information Sheet
