S300W-0502 (S-Series Watertight Stainless Steel Foot Switch, Cable with Leads)

$ 89.55

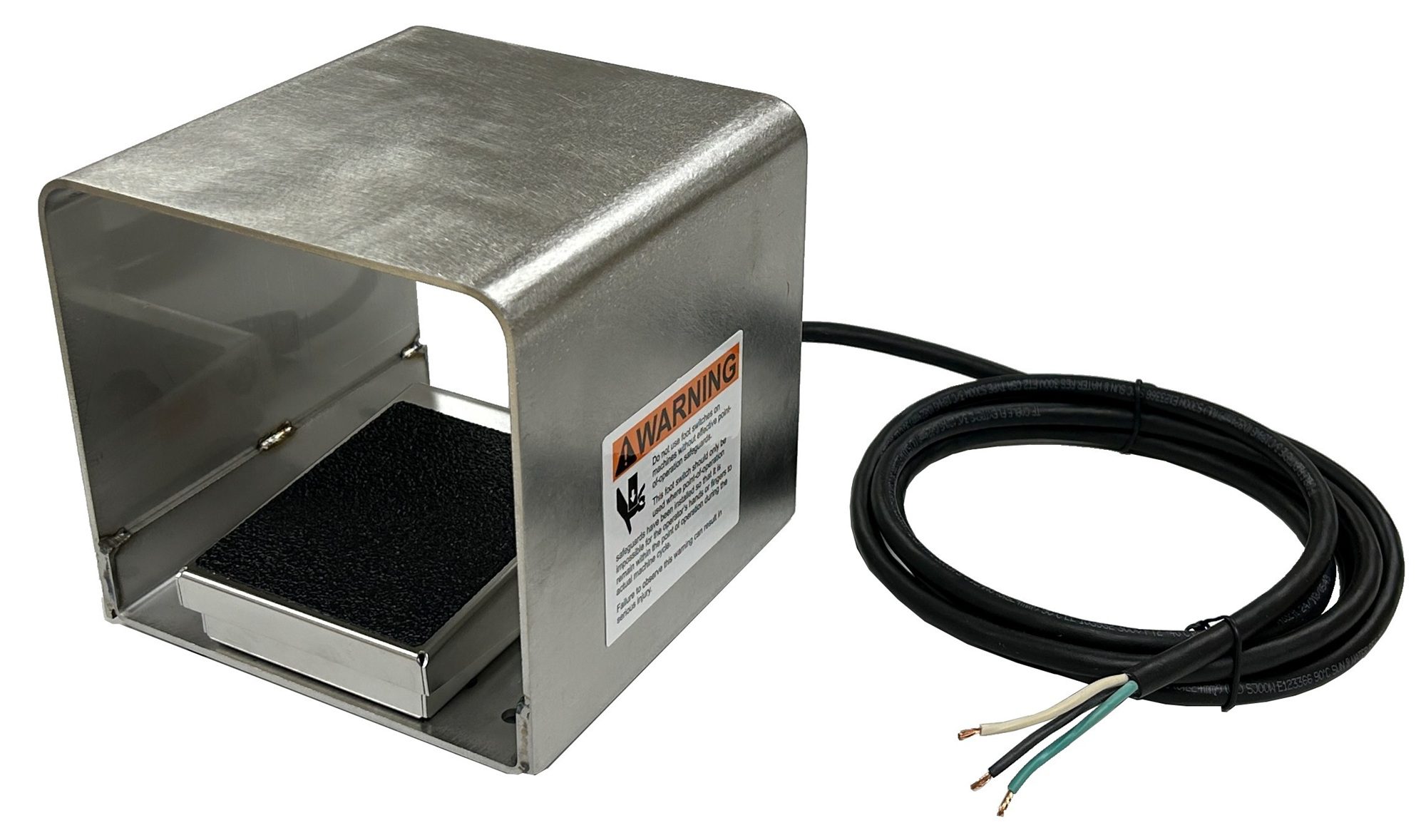

Adds a 12-gauge stainless steel guard to protect from debris and enclose the foot switch. Note: Guard option is currently out of stock and may require four-week lead time.


The S300W-0502 is a drip-tight / water-tight / dust-tight / corrosion-resistant foot switch made of stainless steel with a solid steel shaft for toughness.  Ideal for applications where the foot switch may encounter occasional adverse or wet conditions.  Just press and hold to turn on, lift your foot from the pedal to turn off.  This foot switch has an 8-foot cable with leads.  The three leads must be connected to your device: one ground, one common, and one wired normally open.  You will have to hard-wire this to your equipment, so consult an electrical for installation or proper wiring advice if needed.  Features a 5-amp, 125/250 VAC-rated switch with an 8-foot cable and a 3-pronged piggyback plug (NEMA 5-15 P/R).  Made in USA.
  • Features: drip-tight / water-tight / dust-tight / corrosion-resistant
  • Pedal Action: momentary (press and hold to turn on, release your foot to turn off)
  • Switch Rating: 5A, 125/250 VAC
  • Contacts: SPST wired N.O. (normally open)
  • Cord: 8-foot cable with piggyback plug for wall outlet
  • Applications: Wet, dusty, or adverse conditions where a low-profile switch is ideal
  • Certifications: Certified to CSA and UL standards
  • Enclosure rating: CSA/NEMA Type 1, 4X, 6, 6P
  • EN 60529 Degree of Protection: IP67
  • Warning: Do not use this foot switch underwater.
  • Cross reference: T-91-SWANO38S or 971-SWNO210
  • Product Information Sheet

Additional information

Weight 1.6 lbs
Dimensions 10 × 7 × 2 in
