F200-1501 (F-Series Medium-Duty Foot Switch, Cable with Piggyback Plug)

$ 52.75

Adds a 12-gauge steel guard to protect from debris and enclose the foot switch.

SKU: F200-1501 Category: Tags: , , ,

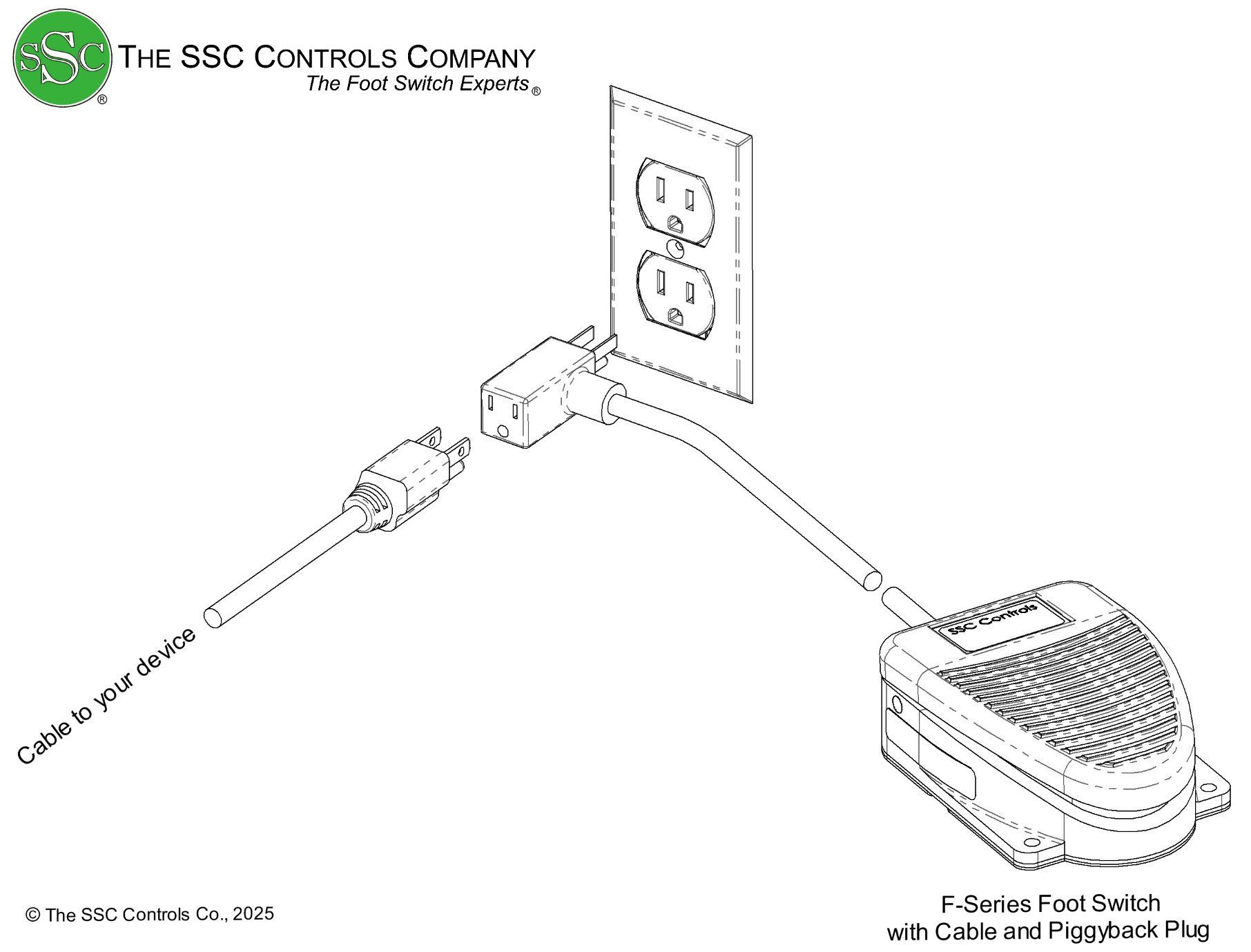

The F200-1501 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and 3-pronged piggyback plug. The added weight and quality will make this a long-lasting foot switch in your home or shop. Ideal for power tools (max 1/2 HP), office equipment, musical operation, meat grinders, Dremel tools, and more. Features a 15-amp, 125 VAC-rated switch with an 8-foot cable and a 3-pronged piggyback plug (NEMA 5-15 series): plug the pedal into your North American wall socket, and then plug your device into the back of that plug, and the foot switch will now be in line with the device. This is a momentary foot switch, which means that it turns your product on when your foot is on the pedal, and turns it off when you release your foot from the pedal. Includes a traction pad and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use only in dry environments. CSA Certified to US and Canadian standards. Size: 4.8″ L x 3.5″ W x 1.7″ H plus the cable; 3 pounds. One year warranty on parts and labor. Made in USA.
  • Action: momentary (press and hold to turn on, release to turn off)
  • # of Switches: 1
  • Switch Rating: 15 A, ½ HP, 125 VAC; 0.1 A, 125 VDC
  • Circuit: SPDT wired N.O.
  • Cable or Terminals: 8-ft cable with piggyback plug for wall outlet
  • Applications: Home or shop tools, Dremel tools, meat grinders (such as for Cabelas), woodworking or router control, more
  • Cross Reference: Clipper 632-SC3 (also with 522-B14 guard if required)
  • Product Info Sheet
  • Exterior Dimensions
  • Wiring Diagram

Additional information

Weight 3.2 lbs
Dimensions 9 × 5 × 3 in
