Description

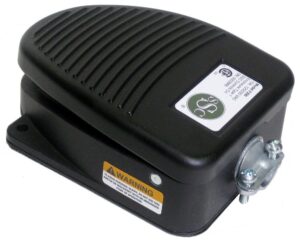

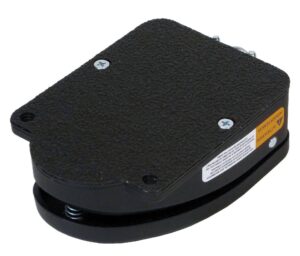

The F200 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and do-it-yourself wiring connection. Ideal for home and shop tools, office and communication equipment, boom lifts, scissor lifts, man lifts, emergency vehicles (fire truck siren or air horn), musical operation, lighting, and more. Features a 15-amp, 125/250 VAC-rated switch with one common, one normally open, and one normally closed contact (SPDT, Form C). The switch has .187 x .020 tabs on it for quick-disconnect terminals (or you can solder directly to the terminals). This is a momentary foot switch, which means that it actuates when your foot is on the foot pedal, and de-actuates when you release your foot from the pedal. Includes adjustable strain relief connector, traction pad, and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. Certified to UL and CSA standards. Size: 4.8″ L x 3.5″ W x 1.7″ H; 2.1 pounds. One year warranty on parts and labor. Made in USA.
- Action: momentary (press and hold to turn on, release to turn off)
- # of Switches: 1
- Switch Rating: 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC
- Circuit: SPDT
- Wiring Connection: The switch has quick-connect tabs (.187 x .020) for terminals or soldering. You will need to attach the cable to the switch (this unit does not come with a cable), as well as to the ground screw.
- Cross Reference: Linemaster® Clipper 632-S, 638-S (Note: See our model F500 if you need a 20-amp rating on the switch, greater electrical capacity, and screw terminals.)
- Info Sheet (F-Series Foot Switches)
- Exterior Dimensions
- Wiring Diagram
